Setting rings for setting gauges to zero

• DIATEST setting rings according to company standard, nominal sizes from 0.500 to 40.000 mm on stock

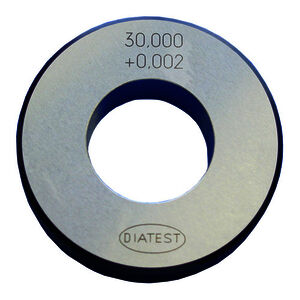

• DIN 2250-C setting rings, from 1.000 to 300.00 mm available, including intermediate sizes
• DIN 2250-B setting rings on request



The zetting rings are similar to the DIN 2250-C rings. This means that they meet all the requirements of DIN 2250-C, except for roundness. Therefore, there is a line marking on the rings to measure and adjust there.

• Sizes: from 8.0 to 100.0 mm, smooth and intermediate dimensions
• Labeling: with actual dimension
• With line marking
• Certificate according to factory standard
• IMPORTANT: A zetting ring can only be ordered in conjunction with a suitable DIATEST bore plug gauge!
